Pressure Control Valves:

Pressure By-Pass Valves

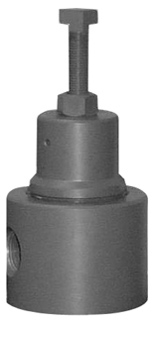

Adjustable Combination Valve - By-Pass - Pressure Relief
PVC - Polypropylene - PVDF

Three port valve with multi-uses. Pressure relief valve will bypass excess fluid or air whenever the pressure you set with the handle is exceeded. This valve can be controlled from 10 through 100 PSI.

Our pressure relief valve will permit straight through flow if mounted in a straight line. In other applications the valve can be mounted on the branch end of a tee by plugging one side hole and piping to the side of the valve.

    Important Features:
  • Viton O-Rings standard
  • No metal in solution - Top Entry
  • Adjustable knob and lock nut
  • Use as by-pass or pressure relief valve
  • Adjustable range 10 thru 100 PSI

Normally Closed Standard
Part # Size Material
FC-P-50 1/2" PVC
FC-P-75 3/4" PVC
FC-P-10 1" PVC
FC-P-15 1-1/2" PVC
FC-P-20 2" PVC
FC-PYP-50 1/2" POLYPRO1
FC-PYP-75 3/4" POLYPRO1
FC-PYP-10 1" POLYPRO1
FC-PYP-15 1-1/2" POLYPRO1
FC-PYP-20 2" POLYPRO1
FC-KP-50 1/2" PVDF2
FC-KP-75 3/4" PVDF2
FC-KP-10 1" PVDF2
1Polypropylene
2Polyvinylidene Fluoride
Dimensions
Size A Dim. B Dim.
1/2" 6.13" 3.00"
3/4" 6.75" 3.50"
1" 7.50" 4.00"
1-1/4" 9.87" 4.50"
1-1/2" 9.87" 4.50"
