Electrical Controls:

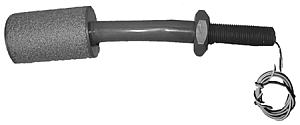

Mini-Max Level Control by FilterChem™

All Plastic - Level Limit Float Switch


IDEAL FOR HIGH OR LOW LEVEL ALARM SERVICE

MINI-MAX will control high or low levels of most all liquids. Designed for use in corrosive atmospheres.

    Important Features:
  • Compact
  • Easy installation
  • No adjustment necessary
  • All PVC construction with polyethylene float
  • Built-in mounting adapter and conduit connector

Mini-Max is an inexpensive float switch designed particularly for hard to handle liquids. Mini-Max will not contaminate high purity water, such as distilled, de-ionized or de-mineralized. Watertight conduit on all applications.

Normally Closed Standard
Part # Description
FC-MM-MR Contact on rising
FC-MM-BR Break on rising

Electrical Specifications
Rated at 20 Amps, 115/120 VAC.
For other service consult our sales department
