Dispensing Assemblies:
Liquid Dispensing Assemblies
Laboratory Faucets / Goosenecks
by FilterChem™
|
Laboratories, Hospitals, Clean Rooms |
|
|
Dispensing assemblies for distilled water, as well as chemical dispensing.
Models are available in PVC, Polypropylene and PVDF. All tips accept 1/8" to 1/2" I.D. tubing.
|
| Liquid Dispensing Assemblies |
| Part # |
Type |
Material |
Valve |

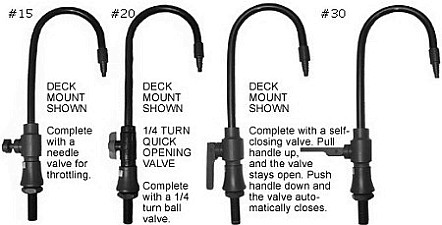

| FC-DA-15D |
15 |
PVC |
NEEDLE |
| FC-DA-15W |
15 |
PVC |
NEEDLE |
| FC-PDA-15D |
15 |
POLYPRO1 |
NEEDLE |
| FC-PDA-15W |
15 |
POLYPRO1 |
NEEDLE |
| FC-KDA-15D |
15 |
PVDF2 |
NEEDLE |
| FC-KDA-15W |
15 |
PVDF2 |
NEEDLE |
| FC-DA-20D |
20 |
PVC |
BALL |
| FC-DA-20W |
20 |
PVC |
BALL |
| FC-DA-30D |
30 |
PVC |
SNAP |
| FC-DA-30W |
30 |
PVC |
SNAP |
| FC-PDA-30D |
30 |
POLYPRO1 |
SNAP |
| FC-PDA-30W |
30 |
POLYPRO1 |
SNAP |
| FC-KDA-30D |
30 |
PVDF2 |
SNAP |

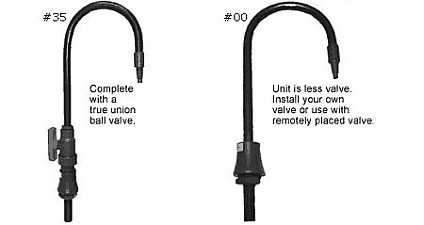

| FC-DA-35D |
35 |
PVC |
T.U. BALL |
| FC-DA-35W |
35 |
PVC |
T.U. BALL |
| FC-PDA-35D |
35 |
POLYPRO1 |
T.U. BALL |
| FC-PDA-35W |
35 |
POLYPRO1 |
T.U. BALL |
| FC-KDA-35D |
35 |
PVDF2 |
T.U. BALL |
| FC-KDA-35W |
35 |
PVDF2 |
T.U. BALL |
| FC-DA-00D |
00* |
PVC |
N/A |
| FC-DA-00W |
00* |
PVC |
N/A |
| FC-PDA-00D |
00* |
POLYPRO1 |
N/A |
| FC-PDA-00W |
00* |
POLYPRO1 |
N/A |
| FC-KDA-00D |
00* |
PVDF2 |
N/A |
| FC-KDA-00W |
00* |
PVDF2 |
N/A |
|
*Less Valve
|
1Polypropylene
2Polyvinylidene Fluoride
|
|
|
| Dimensions |
| Size |
A Dim. |
B Dim. |
| Type 15 |
19½" |
10½" |
| Type 20 |
20" |
10¾" |
| Type 30 |
20" |
10¾" |
| Type 35 |
21¼" |
12" |
|
|
