Electrical Controls:

Mini-Stat Level Control by FilterChem™

All Plastic - Miniature Level Limit Control

Important Features
  • Compact Design - Uses minimum space
  • Available in CPVC/PolyPro combination
  • Available in all natural PVDF
  • Service to 200°F for the CPVC/PP model, 285°F for the PVDF model
  • Adjustable height by means of extension pipe and mounting bracket
  • Voltage 115 VAC - 20 Amp
  • 3 feet of wire furnished with unit
WATER-TIGHT CONDUIT SHOULD BE USED ON ALL INSTALLATIONS

Mini-Stat Switch
Part # Material
FC-MT-1 CPVC/POLYPRO1
FC-KMT-1 PVDF2
1Chlorinated Polyvinyl Chloride/Polypropylene
2Polyvinylidene Fluoride
Mini-Stat Parts
Part # Description
FC-MTMB Mounting Bracket
FC-MTR-6 6" Ext w/ coupling

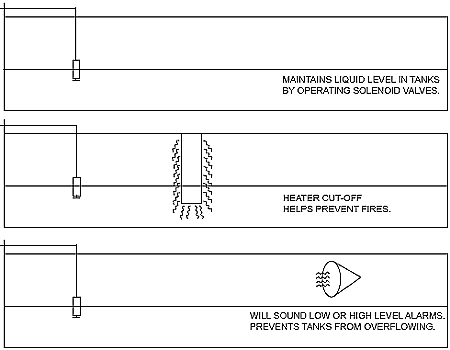

Examples of Use

Mini-Stat uses a magnetically actuated single pole, double throw switch. The Mini-Stat can be used in the following modes:
