 Electrical Controls:

Vacuum Alarm Controls by FilterChem™

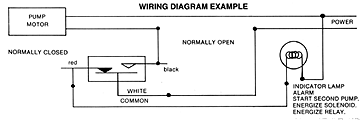

The new FilterChem™ Dry-Guard Vacuum Switch features an SPDT switch for flexibility of wiring.
  • O-Zero Static Head Pressure
  • Vacuum of 1" mercury required
    Applications
  • Self-priming pumps
  • Vacuum pump alarms
  • Vacuum air systems
  • Cleaning and treating
  • Alarm for vacuum system

Vacuum Guard
Part #
FC-VS-125-DC
    Specifications
  • Unit Molded - CPVC
  • Hypalon Diaphragm
  • Conduit adaptor - included
  • Easily installed - 1/2" IPS threaded base
  • Switch rating - 10 amps, 120V AC; 20 amps - per request
    (Use relay for higher current applications)
