Electrical Controls:

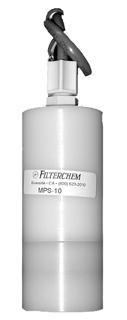

Pressure Switch (adjustable) by FilterChem™

Switch has a multitude of uses, including opening and closing valves, sounding alarms, starting or stopping pumps, avoiding excess pressures on tanks or truck tanks, etc. Switches have UL and CSA listing.

    Important Features

  • Shuts off when pressure increases or decreases.
  • Pressure Limit 125 PSI
  • Size 1 3/4" diameter x 5" height
  • Adjustable 1 to 100 PSI with reset
  • Normally open or closed switch
  • Viton diaphragm standard
  • 1/4" compression fitting

Adjustable Pressure Switches
Part # Material
FC-MPS-10 HDPE1
FC-KMPS-10 PVDF2
FC-TMPS-10 TEFLON
1High Density Polyethylene
2Polyvinylidene Fluoride
Wiring Diagram - Type A & B
A
Switch opens when pressure rises
Switch closes when pressure drops
B
Switch closes when pressure rises
Switch opens when pressure drops
C
Black to red opens when pressure rises
Black to white closes when pressure rises
Black to red closes when pressure drops
Black to white opens when pressure drops
